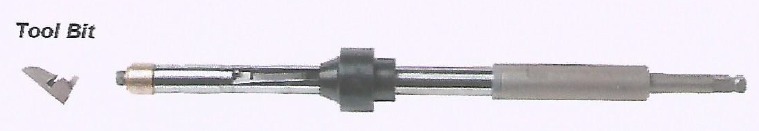

Push type Internal Tube Cutter cuts the Ferrous or Non-Ferrous tubes of the Condensers, Heat-Exchangers. This internal tube cutter can be operated with Electric or Pneumatic drill machine.
This tool is easy to operate. Insert the tool in the tube which is to be cut. Adjust the thrust collar as per the cutting length required then gradually press the Electric or Pneumatic drive which is attached to the tool. The cutting bit cuts the tube within few seconds.
Cutting bit can be replace easily.

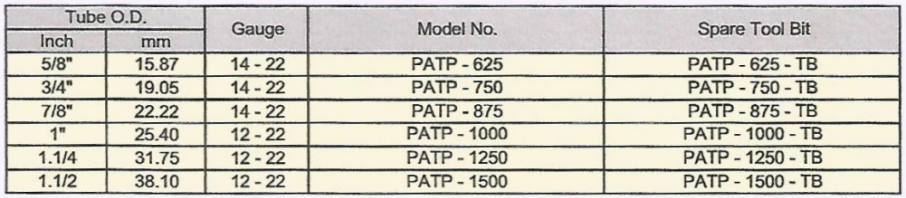

Standard adjustment reach is 4". The tools are available in the increments of 2" uptp 10" Every too! comes with the complete set of Pilots to cover the entire range of tube thickness for that perticular tube 0.D.

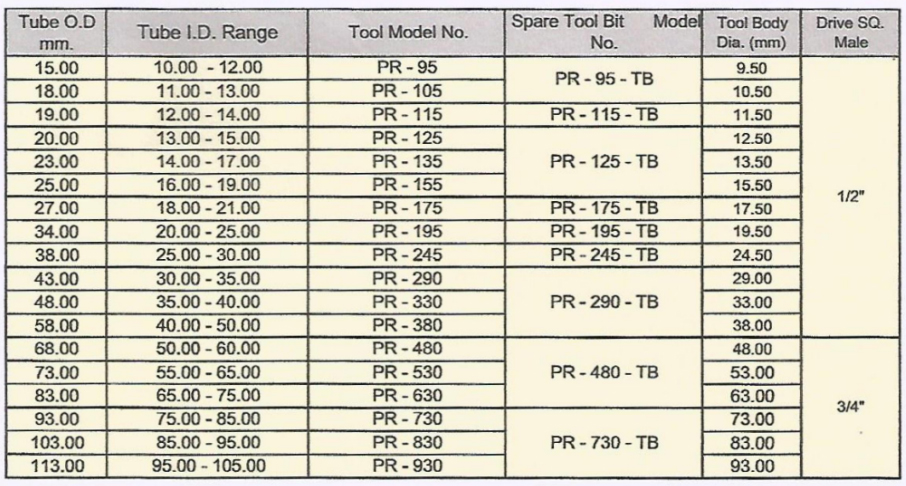

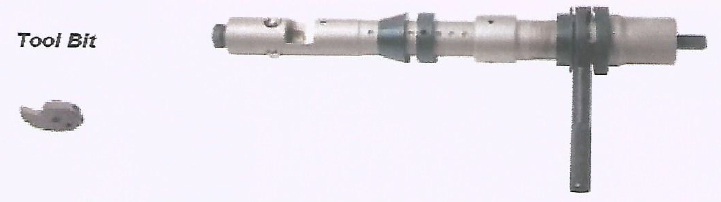

Internal Tube Cutter PR Series
1.1/2"- 4" O.D.
This PR series is a Heavy Duty Series This cutters are suitable for the thick walled Boiler Tubes Up to 4' 0.0. The PR series internal tube cutter can be operate by Electric, Pneumatic, or Hydraulic Drives. Standard adjustment reach is 4". The tools are available in the increments of 4" Upto 16"
Manual Tube Puller
No Power Requited Manual Insertion of tool & easy removal of tube with hand wrench.
Easy to Use :- Hex at the and of the Spear allows tightening without disassembly of tool.

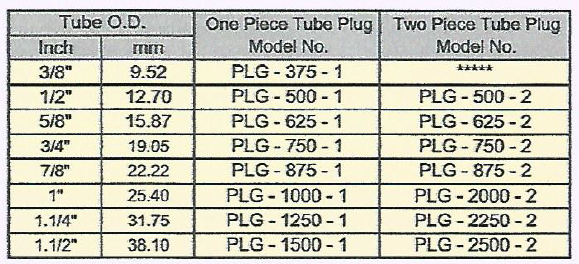

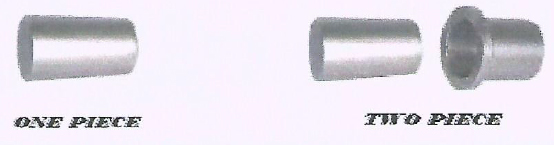

Tube Plug
Tube Plugs are used to sealing or plugging the damaged tube ends in Heat Exchangers, Condensers, Boilers etc.
